Trace congenital heart connections to explain cyanosis, pulmonary overcirculation and duct dependence, then apply repair and follow-up decisions in cases.
A newborn can be dangerously underperfused without looking very blue. Another can have blue lips while blood flow to the lungs is excessive. Start with the route blood can take, then ask what happens when the ductus closes.
Color describes the result. Connections, resistance and obstruction explain the problem.
Read the circuit before naming the defect
In the usual circulation, systemic veins return blood to the right atrium, the right ventricle sends it to the pulmonary arteries, and pulmonary veins return oxygenated blood to the left atrium. The left ventricle then supplies the aorta. A septal opening adds a connection; an abnormal artery changes a destination; an obstruction limits a route. These are different problems even when oxygen saturation looks similar.
Series circulation versus two parallel loops
Usual series route
Body → right atrium → right ventricle
Pulmonary artery → lungs
Pulmonary veins → left atrium → left ventricle
Aorta → body

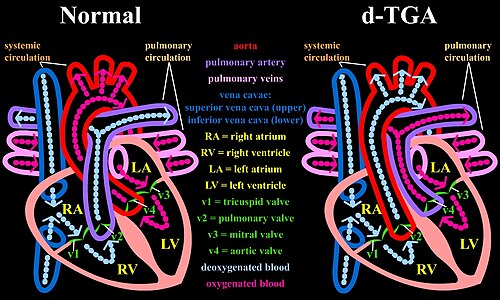

d-TGA without enough mixing
Body → right atrium → right ventricle → aorta → body.
Lungs → pulmonary veins → left atrium → left ventricle → pulmonary artery → lungs.
An atrial, ventricular or ductal communication permits exchange between the loops.
Arrows represent blood-flow connections, not physical distances. Both loops in d-TGA can carry blood, yet systemic oxygen delivery remains inadequate. [6]
Pulmonary vascular resistance is high before birth and falls after lung expansion. Systemic resistance rises when placental circulation ends. A large VSD may therefore be quiet initially, then produce tachypnea and feeding difficulty as left-to-right flow increases over the following weeks. Qp/Qs compares pulmonary with systemic flow. A ratio above one indicates net pulmonary overcirculation; it does not alone establish operability. [3][18]
What oxygen can and cannot tell you
Assess breathing, pulses, perfusion, glucose and acid-base status while obtaining urgent echocardiography. Measure preductal saturation on the right hand and postductal saturation on a foot. Two hand readings are not the standard comparison. Poor oxygen response raises concern for a cardiac shunt, persistent pulmonary hypertension of the newborn or severe pulmonary disease. A hyperoxia test cannot reliably separate them and must not delay support or transfer. A normal screening saturation also cannot exclude every obstructive lesion. [1][29]
Left-to-right, right-to-left and bidirectional describe flow, not permanent labels attached to every defect. Isolated coarctation and valve stenosis are obstructive lesions, not septal shunts. Cyanosis in mixing lesions depends on the balance of pulmonary and systemic flow. [6][18]
Try it here · Checkpoint 1 of 3
Make your prediction before reading the choices. A first attempt is just a starting point.
Case 14
Show answer and explanations for case 14
A. Progressive restriction of pulmonary flow from severe RV outflow obstruction (Why this does not fit)
The pulmonary arteries arise from the common trunk; the anatomy does not describe the severe RV outflow restriction typical of a low-flow TOF presentation.
B. Persistent normal pulmonary flow because mixing prevents pressure-driven redistribution (Why this does not fit)
Mixing does not abolish resistance-dependent flow; falling pulmonary resistance can still increase the pulmonary share of output.
C. Increasing net pulmonary-to-systemic ductal flow as the obligatory source of all systemic output (Why this does not fit)
The common trunk already supplies systemic arteries; duct-dependent systemic perfusion would require additional arch anatomy not described here.
D. Increasing pulmonary overcirculation and heart failure (Best answer)
Lower pulmonary resistance draws more flow into the lungs despite ongoing mixing and cyanosis.
Takeaway: Cyanosis does not imply low pulmonary blood flow.
A ventricular septal defect allows systolic flow between ventricles. Small restrictive VSDs maintain a large pressure difference and may make a striking harsh holosystolic murmur at the lower left sternal border. Loudness is not a measure of shunt volume. A large nonrestrictive opening can transmit near-systemic pressure to the right ventricle and pulmonary arteries with a less impressive murmur. Recirculated pulmonary blood returns to the left atrium and ventricle, producing left heart volume loading. [3][31]
Small muscular defects commonly close spontaneously. Nonmuscular defects require surveillance for associated problems, including aortic cusp prolapse, aortic regurgitation and outflow obstruction. Poor growth, persistent pulmonary overcirculation or progressive left heart enlargement prompts repair assessment. Large defects may warrant closure despite few symptoms, including when persistently high pulmonary resistance masks overcirculation. Specialist assessment determines timing and operability. Do not wait for cyanosis. The AV conduction axis lies near the posteroinferior border of a typical perimembranous defect, explaining the risk of AV block with intervention. Anatomy varies, so this relationship is not a procedural instruction. [3][25]
ASD loads the right heart
An atrial septal defect usually sends blood from left atrium to right atrium because the right ventricle accepts filling more readily. The right atrium and right ventricle enlarge. The systolic ejection murmur comes from increased flow across the pulmonary valve, not from a high-pressure jet through the atrial hole. Prolonged right ventricular ejection and reduced respiratory variation in filling produce the characteristic wide, fixed split S2. [23][31]
Atrial-level opening
Secundum ASD lies at the fossa ovalis. A PFO is a persistent flap communication, not a true deficiency of atrial septal tissue.
Junction or venous abnormality
Primum defects lie adjacent to the AV junction. Sinus venosus defects lie near caval connections and often accompany partial anomalous pulmonary venous return. An unroofed coronary sinus creates communication with the left atrium.
A venous thrombus can cross to systemic arteries when right-to-left passage occurs transiently, such as during straining. An ASD does not mean the shunt is continuously right-to-left. Device closure is for suitable secundum anatomy, with adequate tissue and safe separation from nearby structures. Primum defects generally require surgery; an inferior rim deficiency cannot be dismissed because an aortic rim looks adequate. [17][18][23]
AVSD involves the central junction
Complete atrioventricular septal defect combines an atrial component, an inlet ventricular component and a common AV valve. Partial AVSD usually has a primum atrial component and abnormal left AV valve, without the large ventricular component. The left AV valve can regurgitate. This reflects abnormal development of the AV junction and its septal structures, traditionally called an endocardial cushion defect.
Trisomy 21 strongly raises its likelihood, but echocardiographic anatomy establishes the diagnosis. Complete AVSD requires surgical repair, generally in infancy, with timing guided by symptoms and anatomy before pulmonary vascular injury develops. Medicines can support feeding and reduce congestion while awaiting repair; they do not close the defect. [4]
PDA recirculates blood beyond the ventricles
The ductus joins the pulmonary arterial side near the left pulmonary artery to the proximal descending aorta, usually beyond the left subclavian artery. After pulmonary resistance falls, aortic-to-pulmonary flow can persist in systole and diastole, creating a continuous infraclavicular murmur. Diastolic runoff contributes to bounding pulses and a wide pulse pressure. The classic continuous sound may be absent when pulmonary pressure is high. [5][18]
In a preterm infant, echocardiographic patency alone is not a command to close the duct. The 2025 AAP report advises against routine early closure in the first two weeks because closure has not improved major outcomes. Later hemodynamically significant PDA requires individualized assessment. If pharmacologic closure is selected, ibuprofen or indomethacin inhibits cyclooxygenase and prostaglandin synthesis; acetaminophen is another selected option. Renal, bleeding and intestinal risks matter. Alprostadil has the opposite purpose. [5][2]
Separate restricted lung flow from inadequate mixing
Tetralogy of Fallot
TOF consists of right ventricular outflow tract obstruction, a VSD, an overriding aorta and right ventricular hypertrophy. More severe outflow obstruction directs more right ventricular blood toward the aorta. Mild obstruction may produce little cyanosis. The systolic murmur reflects outflow obstruction; the large VSD itself may generate little turbulence. An upturned apex and concave pulmonary segment can create the classic boot silhouette, but radiographs neither establish nor exclude the diagnosis. [7][31]
During a hypercyanotic spell, reduced pulmonary flow causes deeper cyanosis and hyperpnea, often after crying or feeding. The murmur can become softer as less blood crosses the outflow tract. Calm the child, use a knee-chest position, provide oxygen and summon emergency cardiac support. Increasing systemic resistance reduces right-to-left flow; specialist treatment can include volume when appropriate, sedation, a vasoconstrictor and beta-blockade. Persistent spells require escalation and repair planning, not repeated observation at home. [8][28]
d-TGA
The aorta arises from the right ventricle and pulmonary artery from the left. Alprostadil may improve ductal exchange, but a restrictive atrial communication can still leave systemic oxygen delivery critically low. Balloon atrial septostomy enlarges that mixing route. The usual definitive repair is a neonatal arterial switch with coronary reimplantation. Timing depends on anatomy and ventricular preparedness; do not convert the common early neonatal schedule into a universal two-week deadline. An egg-shaped silhouette with a narrow mediastinum is a historical association, not a required or pathognomonic finding. [6][26][31]
Truncus and TAPVR can flood the lungs
Truncus arteriosus has one common arterial trunk supplying coronary, systemic and pulmonary circulations, usually above a large VSD. Mixed blood can cause cyanosis while falling pulmonary resistance produces excessive pulmonary flow and heart failure. Repair directs left ventricular blood to the systemic trunk and establishes a separate right ventricle-to-pulmonary artery route. An aortopulmonary window instead connects two separate great arteries; double outlet right ventricle also has two arteries. [12][18]
In total anomalous pulmonary venous return, pulmonary veins connect to systemic venous channels or the right atrium instead of directly to the left atrium. Mixed blood must reach the left heart through an atrial communication. Supracardiac, cardiac, infracardiac and mixed drainage patterns exist. Infracardiac drainage is particularly prone to obstruction, but obstruction must be demonstrated rather than assumed in every case. Cyanosis with pulmonary edema and obstructed venous drainage demands urgent surgical relief. Ductal patency cannot clear that venous obstruction and may worsen pulmonary congestion. [9][1]
Tricuspid atresia and Ebstein anomaly
Tricuspid atresia removes the direct right atrium-to-right ventricle route. An atrial opening is obligatory; pulmonary supply depends on associated ventricular, arterial and ductal anatomy. A small right ventricle and often leftward ECG axis distinguish it from the usual right ventricular dominance in many cyanotic lesions. In Ebstein anomaly, incomplete separation of developing tricuspid leaflets from the ventricular wall leaves abnormal attachments toward the apex, leaving an atrialized portion of right ventricle and variable tricuspid regurgitation. An atrial communication may permit cyanosis, and accessory pathways can produce tachyarrhythmias. [11][13][31]
Try it here · Checkpoint 2 of 3
Make your prediction before reading the choices. A first attempt is just a starting point.
Case 12
Show answer and explanations for case 12
A. A larger left-to-right VSD shunt producing more pulmonary flow (Why this does not fit)
That would increase pulmonary supply rather than explain abrupt deeper cyanosis with less outflow sound.
B. Acute worsening of pulmonary valve regurgitation as the principal event (Why this does not fit)
Regurgitation would add a diastolic flow abnormality; the crying-triggered spell and quieter systolic murmur fit reduced forward RV outflow.
C. A fall in systemic resistance causing increased forward pulmonary flow (Why this does not fit)
Lower systemic resistance tends to favor right-to-left output; increased pulmonary flow would not explain the softer outflow murmur.
D. Less blood crossing the obstructed RV outflow tract (Best answer)
Worsening outflow obstruction reduces pulmonary flow, so its murmur can soften even as cyanosis worsens.
Takeaway: A softer TOF murmur during deeper cyanosis may mean less pulmonary flow.
In d-TGA, atrial exchange may still be inadequate even with an open ductus.
Flow direction depends on pressures and anatomy. A patent duct is harmful in some settings and essential in others. [2][6][10]
When duct-dependent disease is suspected in a sick newborn, stabilize and obtain urgent specialist input; alprostadil can maintain or restore ductal patency while definitive anatomy is established. Apnea and hypotension are recognized adverse effects, so ventilatory support must be available. Apnea requires immediate respiratory assistance and specialist reassessment of the infusion; the label directs interruption and cautious restarting. Prostaglandin is a bridge, not repair. Critical valvular aortic stenosis may need balloon valvuloplasty or surgery according to valve and ventricular anatomy. Balloon dilation is not the treatment for subaortic or supravalvular narrowing. [30][1][2]
HLHS is a spectrum of severe left ventricular, aortic and mitral underdevelopment. Valves may be stenotic or atretic; they are not uniformly absent. Pulmonary venous blood needs an atrial route to the right side, and the right ventricle supports systemic output through the ductus. A restrictive atrial septum creates an additional emergency that an open duct cannot solve. [10]
Coarctation usually affects the aortic isthmus near the ductal insertion. Critical disease can cause shock as the duct closes. Later presentation may include arm hypertension, lower leg pressure and delayed femoral pulses. Intercostal collateral enlargement can cause inferior rib notching in older children or adults, not typically newborns. [33] Compare arm and leg pressures; left-arm pressure depends on arch-branch anatomy. The historical preductal/postductal labels do not replace imaging. [18][22]
Lower foot saturation than right-hand saturation can result from pulmonary artery-to-descending-aorta ductal flow. This is differential cyanosis. Reverse differential cyanosis means the foot is more saturated than the right hand, a possible pattern with d-TGA and particular ductal/pulmonary-pressure relationships. Neither pattern alone names the lesion. [27][1][6]
Genetic associations guide additional evaluation. AVSD suggests trisomy 21; TOF, truncus or interrupted aortic arch type B suggests 22q11.2 deletion. Check calcium and immune function when appropriate, without assuming complete parathyroid or thymic absence. Type B interruption lies between the left common carotid and left subclavian arteries. [35] Turner syndrome is associated with coarctation and bicuspid aortic valve. Williams syndrome involves 7q11.23, including ELN, and can cause supravalvular aortic and peripheral pulmonary artery narrowing. These are probabilities, not exclusive pairings. [4][14][15][16][18]
Repair changes the circulation, not the need for care
Prevent pulmonary vascular disease before it becomes fixed
Large unrepaired shunts can produce pulmonary arterial remodeling and rising resistance. Bidirectional or reversed flow with cyanosis defines established Eisenmenger physiology in the appropriate setting. High pulmonary pressure alone does not prove irreversible disease. Expert hemodynamic assessment separates potentially operable high-flow lesions from fixed severe pulmonary vascular disease. Once Eisenmenger syndrome is established, closing the shunt is harmful. Pulmonary arterial hypertension therapy and, in selected advanced cases, transplant assessment belong in specialist care. Secondary erythrocytosis is adaptive; routine phlebotomy is not a treatment for a number alone. [18]
Know what the repair leaves behind
Repaired TOF can develop pulmonary regurgitation, progressive right ventricular enlargement, exercise intolerance and arrhythmias. Follow symptoms, rhythm, echo and cardiac MRI measurements together when considering pulmonary valve replacement. A single volume cutoff is not a complete indication. Bicuspid aortic valve requires attention to stenosis, regurgitation and the ascending aorta even when childhood valve function is good. Imaging intervals depend on size, growth and clinical findings; first-degree relative screening is recommended with associated aortic dilation and is reasonable even without it. [18][22]
Single-ventricle palliation is individualized. In HLHS, a Norwood-type first stage establishes a reconstructed systemic aortic outlet supplied by the RV, with controlled pulmonary flow through a shunt or RV-to-pulmonary artery conduit. [10] Other anatomies may instead need initial augmentation or restriction of pulmonary flow. A Glenn connects superior caval return to pulmonary arteries, followed in suitable patients by Fontan completion routing inferior caval return.
The systemic ventricle still pumps blood to the body. What is absent is a dedicated subpulmonary pump. Passive pulmonary flow requires favorable resistance and creates chronic venous pressure burdens. Liver disease, protein-losing enteropathy, thrombosis and rhythm problems require surveillance even with preserved ventricular systolic function. [11][20][32]
Good dental care is central. Antibiotic prophylaxis before qualifying dental procedures is reserved for defined high-risk groups, including unrepaired cyanotic disease, prosthetic valves, previous endocarditis and specified residual defects at prosthetic repairs. An isolated small acyanotic VSD is not itself an indication. Pregnancy planning should review ventricular function, shunt burden, aortic dimensions and pulmonary pressures; uncomplicated ASD and Eisenmenger syndrome carry very different risks. [19][24]
Make the decision from the bottleneck
Poor feeding and pulmonary overcirculation → define shunt size, chamber loading and repair needs.
Severe neonatal cyanosis → assess mixing, pulmonary flow and venous drainage on echo.
Shock as the duct closes → protect ductal flow while identifying systemic obstruction.
Late cyanosis after a large shunt → assess pulmonary vascular disease before considering closure.
New symptoms after repair → investigate residual hemodynamics and rhythm instead of assuming cure.
Try it here · Checkpoint 3 of 3
Make your prediction before reading the choices. A first attempt is just a starting point.
Case 34
Show answer and explanations for case 34
A. Counsel against pregnancy solely because any unrepaired ASD carries Eisenmenger-level risk (Why this does not fit)
Her absent pulmonary hypertension and preserved function distinguish this physiology from Eisenmenger syndrome.
B. Plan elective device closure in the second trimester without preconception assessment (Why this does not fit)
There is an opportunity to assess anatomy and hemodynamic indications before pregnancy; routine planned intervention during pregnancy is not justified.
C. Arrange congenital and pregnancy-heart-team assessment, including whether closure is indicated before conception (Best answer)
Significant hemodynamic lesions should be assessed before pregnancy; anatomy and physiology determine intervention and surveillance.
D. Defer congenital review until pregnancy symptoms appear because current RV function is preserved (Why this does not fit)
Substantial shunting and RV enlargement warrant assessment of a potentially indicated intervention before conception.
Takeaway: Pregnancy risk follows physiology, not the defect name alone.
A. A rise in pulmonary vascular resistance diverting blood toward the lungs (Why this does not fit)
Higher pulmonary resistance generally reduces pulmonary flow and favors systemic right-to-left output.
B. A rise in systemic vascular resistance that reduces right-to-left shunting (Best answer)
Greater systemic resistance favors a larger share of ventricular output reaching the pulmonary route.
C. A fall in venous return sufficient to account for improved oxygen delivery (Why this does not fit)
Reduced filling alone does not explain the established squatting response, which centers on increased systemic resistance and reduced right-to-left shunting.
D. A fall in systemic vascular resistance (Why this does not fit)
Lower systemic resistance generally favors right-to-left flow through the VSD.
Takeaway: Higher systemic resistance can reduce right-to-left shunting in TOF.
A. Valvular aortic stenosis (Why this does not fit)
Valvular obstruction affects output to both arms and legs. It does not explain this regional arm-leg gradient with intercostal collateral enlargement.
B. Coarctation of the aorta (Best answer)
Aortic narrowing distal to the upper-body branches produces proximal hypertension and delayed lower-body pulses. Enlarged intercostal collateral arteries bypass the obstruction and cause inferior rib notching over time.
C. Pulmonary valve stenosis (Why this does not fit)
This obstructs RV flow toward the lungs rather than the systemic aortic route and does not account for the arm-leg findings.
D. A large patent ductus arteriosus (Why this does not fit)
An uncomplicated left-to-right PDA can cause bounding pulses and diastolic runoff, but it does not explain delayed femoral pulses with a persistent proximal-distal obstruction pattern.
Takeaway: Rib notching is a collateral-flow finding in longstanding coarctation.
A. Sepsis causing apnea, so obtain cultures before addressing ventilation (Why this does not fit)
Sepsis remains a differential diagnosis, but respiratory support cannot wait for testing in an apneic infant.
B. A recognized alprostadil adverse effect needing immediate ventilatory support and infusion reassessment (Best answer)
The label identifies apnea early during infusion and requires available ventilatory assistance. Promptly reassess the infusion with the neonatal/cardiac team; the label directs interruption for apnea and cautious restarting. The duct-dependent circulation still needs a supported treatment plan.
C. Periodic breathing of infancy requiring only routine observation (Why this does not fit)
New respiratory pauses during alprostadil therapy require assessment and support rather than assuming benign periodic breathing.
D. Pulmonary overcirculation best treated immediately with ductal closure (Why this does not fit)
This infant depends on the duct for pulmonary flow. Deliberate closure can worsen oxygen delivery and does not address medication-associated apnea.
Takeaway: Protect ventilation while maintaining an appropriate plan for duct-dependent circulation.
A. The conduction axis lies along the anterosuperior border (Why this does not fit)
This can be a relevant relationship in a muscular inlet defect, but the typical perimembranous axis is posteroinferior.
B. The distal right bundle crosses the moderator band (Why this does not fit)
This distal relationship is real, but isolated right bundle injury does not explain loss of all AV conduction.
C. The AV conduction axis runs near the posteroinferior border (Best answer)
The axis penetrates the central fibrous body near this border of a typical perimembranous defect and can be injured during repair.
D. The sinus node lies near the superior caval-right atrial junction (Why this does not fit)
This describes sinus-node location; injury there causes sinus-node dysfunction rather than explaining the perimembranous repair risk of complete AV block.
Takeaway: Perimembranous anatomy brings the repair close to conduction tissue.
A. Offer valve replacement now solely to prevent progression of mild aortic dilation (Why this does not fit)
An otherwise functioning valve and mildly dilated aorta require risk-based surveillance rather than automatic valve surgery.
B. Stop imaging until a murmur becomes louder (Why this does not fit)
Aortic disease may progress independently of valve auscultation.
C. Tailor serial valve and aortic imaging to measurements and growth, and arrange first-degree relative screening (Best answer)
BAV entails valve and aortic risks; surveillance cannot depend on symptoms alone. First-degree relatives should have screening for BAV and aortic dilation.
D. Use the same five-year interval regardless of aortic size (Why this does not fit)
Intervals must account for dilation, growth and other risk factors.
Takeaway: A functioning bicuspid valve does not exclude aortopathy.
