Cranial Dysfunction: Axes, Landmarks, and Clinical Limits
Compare cranial strain axes and naming conventions, identify skull landmarks, and separate osteopathic teaching models from urgent clinical findings.
A cranial pattern name is useful only if the reader knows which bone, axis, and reference direction it describes. “The fingers point right” is incomplete without a hand-contact convention. Learn the bone relationships first, then ask what a palpatory finding can actually establish in a patient.
Know what the cranial model claims
Osteopathic cranial teaching uses the primary respiratory mechanism, or PRM, as a conceptual model. Its five linked propositions concern intrinsic central nervous system motility, cerebrospinal fluid fluctuation, intracranial and intraspinal membrane mobility, cranial articular mobility, and involuntary sacral motion between the ilia. “Respiratory” in this vocabulary is not simply lung ventilation. The cranial rhythmic impulse, or CRI, is the palpated rhythm attributed to the model; six to twelve cycles per minute is a common teaching range, not a validated vital-sign interval. [1]
Keep the model separate from established anatomy. CSF circulates and has pulsatile dynamics, and cranial sutures and dural folds are real structures. Those facts do not establish every proposed PRM mechanism or the diagnostic accuracy of a bedside CRI measurement. The spheno-occipital synchondrosis is a developmental cartilage junction that normally fuses with maturation. Fusion timing varies. An adult cranial diagram should not portray it as a freely hinged joint with large excursions. [4][5]
Reliability and efficacy are also different questions. A small osteopathic pilot study reported better within-examiner agreement for strain-pattern labels than for CRI rate or quadrant assessments. That finding does not establish agreement among all clinicians, validate diagnosis of intracranial disease, or prove therapeutic benefit. A separate repeated-measures study illustrates the continuing reliability problem in PRM palpation. These limitations should accompany the terminology rather than appear only after treatment claims. [6][12]
The term “still point” describes a perceived pause during an assessment or technique. It does not mean that CSF production or circulation has stopped. The historical name “compression of the fourth ventricle,” or CV4, should not be read as literal fingertip compression of the ventricle. Direct techniques engage a perceived restriction and indirect techniques follow ease, but neither classification demonstrates a particular physiologic mechanism or removes the need for clinical screening.
Describe the skull and sacrum in a stated reference frame

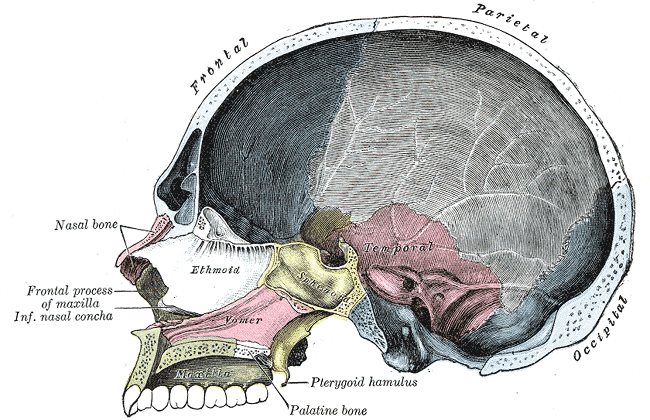

In the traditional sphenobasilar synchondrosis, or SBS, model, flexion and extension involve the sphenoid and occiput rotating oppositely about two transverse axes. During flexion, the modeled dorsal convexity at the SBS increases superiorly; the head is described as relatively wider transversely and shorter anteroposteriorly. Paired bones are described in external rotation. During extension, those relationships reverse. These schematic terms describe the model, not a measured change in an adult's head dimensions during an ordinary examination. [1]
Traditional cranial phases: describe the direction, not just the word “flexion”
Reference
Cranial flexion phase
Cranial extension phase
ReferenceModeled SBS contour
Cranial flexion phaseGreater superior convexity
Cranial extension phaseReduced superior convexity
ReferenceVault proportions
Cranial flexion phaseRelatively broad and short
Cranial extension phaseRelatively narrow and long
ReferencePaired-bone convention
Cranial flexion phaseExternal rotation
Cranial extension phaseInternal rotation
ReferenceSacral base in cranial convention
Cranial flexion phasePosterior and superior, counternutation
Cranial extension phaseAnterior and inferior, nutation
A conceptual comparison, not an exaggerated drawing of joint displacement. Ordinary postural sacral flexion names anterior base motion, so it uses “flexion” differently from the cranial phase.
Midline bones such as the sphenoid, occiput, ethmoid, and vomer are discussed with flexion-extension terminology; paired bones such as the temporals and parietals use internal-external rotation terminology. The ethmoid and vomer are not additional SBS joints. In the conventional flexion description, greater wings trend inferiorly, anteriorly, and laterally. Temporal external rotation is associated with mastoid tips directed medially; a lateral direction at one part of a bone does not require every part to travel laterally. [1][11]
The sacrum deserves particular care with language. Cranial flexion is paired with a posterior sacral base in this model, whereas ordinary sacral flexion means nutation, an anterior base relative to the ilia. State the base direction whenever a question crosses between cranial and postural terminology. Do not infer a mandatory innominate rotation from a cranial label. Relative pelvic descriptions depend on which bone is the reference, and the proposed craniosacral relationship is not a proven rigid mechanical linkage.
Name strains from the specified bone relationship
“Physiologic” and “nonphysiologic” are traditional pattern categories. Flexion-extension, torsion, and sidebending-rotation belong to the first category. Vertical strain, lateral strain, and compression belong to the second. The categories do not prove a trauma history. A nonphysiologic label does not necessarily imply an absent rhythm, and a physiologic label does not exclude disease. [1][2]
Axis comparison in the osteopathic cranial model
Pattern
Axes and relative rotations
Naming reference
PatternTorsion
Axes and relative rotationsOpposite rotations about one anteroposterior axis
Naming referenceThe higher greater wing of the sphenoid
PatternSidebending-rotation
Axes and relative rotationsOpposite rotations about two vertical axes plus same-direction rotation about an anteroposterior axis
Naming referenceThe side of convexity
PatternSuperior vertical strain
Axes and relative rotationsSame-direction rotation about two transverse axes; sphenoid flexion with occipital extension
Naming referenceBasisphenoid relatively superior to basiocciput
PatternInferior vertical strain
Axes and relative rotationsSame-direction rotation about two transverse axes; sphenoid extension with occipital flexion
Naming referenceBasisphenoid relatively inferior to basiocciput
PatternLateral strain
Axes and relative rotationsSame-direction rotation about two vertical axes
Naming referenceSide of relative basisphenoid displacement
PatternCompression
Axes and relative rotationsMarkedly reduced perceived SBS compliance
Naming referenceRestricted compliance, not a high-wing or translation label
For torsion, a higher right greater wing names a right torsion. Do not label it from whichever occipital contact feels prominent; the sphenoid and occiput rotate oppositely in the model. For sidebending-rotation, both the vertical-axis component and the anteroposterior component are necessary. A right convexity names right sidebending-rotation. For vertical strain, use the basisphenoid's relationship to the basiocciput; the greater wing's apparent height is not the naming reference.
Lateral-strain hand shortcuts are not standardized across texts. Capobianco and Shermon's 2020 taxonomy specifically discusses the disagreement and proposes naming in the direction the index fingers point; the corresponding hand is anterior in their depicted convention. This lesson uses that published convention when hand findings are supplied and explicitly states basisphenoid displacement in case stems. The earlier little-finger shortcut is not treated as universally correct. The stable anatomical definition is the relative basisphenoid direction; the hand model must be declared. [2]
Place contacts on bones you can actually reach
In a conventional vault hold, index fingers contact the greater wings of the sphenoid, middle fingers contact temporal squama anterior to the ears, ring fingers contact temporal or mastoid regions behind the ears, and little fingers contact occipital squama. Thumbs are kept above the vault rather than used as greater-wing contacts. The petrous ridge is internal; a ring finger outside the head does not touch it directly. Relaxed contacts are a means of assessment, not evidence of a validated internal pressure measurement. [11]

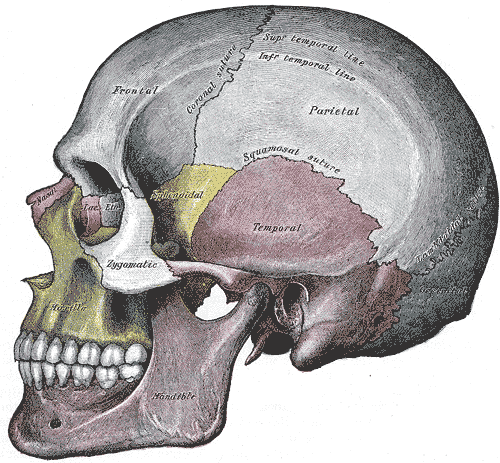

The pterion joins frontal, parietal, greater-wing sphenoid, and squamous temporal regions. The anterior division of the middle meningeal artery is clinically important deep to this area. Lateral head trauma with deterioration raises concern for an epidural hemorrhage; a lucid interval is not required before urgent evaluation. The asterion lies where parietal, occipital, and mastoid temporal regions meet. Its relationship to the transverse-sigmoid venous region varies, so it is not an exact externally guaranteed sinus coordinate. [3][15]

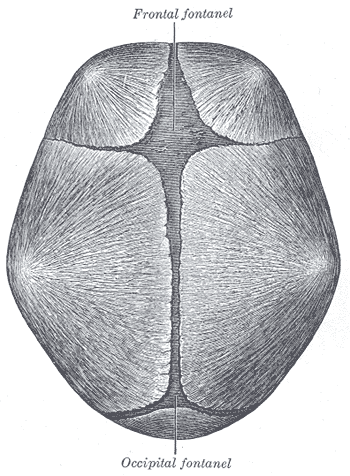

Bregma is the adult coronal-sagittal junction; lambda is the sagittal-lambdoid junction. The infant anterior fontanelle occupies the frontal-parietal meeting region, where the metopic suture may extend forward. That does not make a persistent metopic suture a required component of adult bregma. The posterior fontanelle corresponds to the region near lambda. Fontanelle closure and skull-suture fusion are different events; a closed fontanelle does not mean that all sutures have fused.

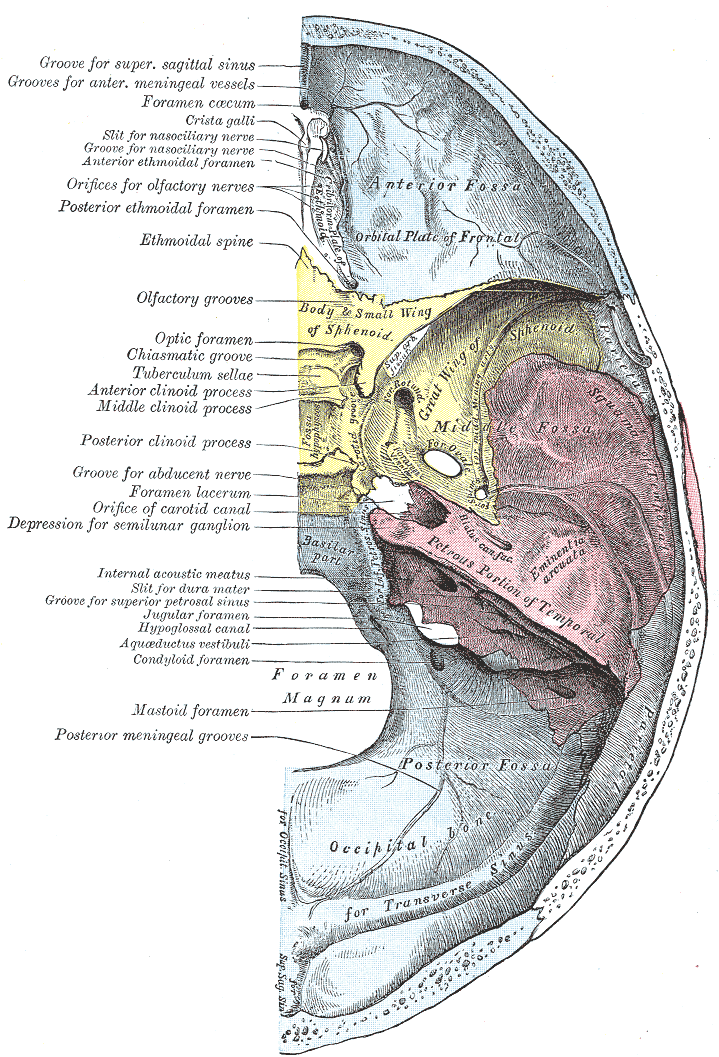

Internally, the falx cerebri separates the cerebral hemispheres and attaches anteriorly near the crista galli. The tentorium separates posterior cerebral structures from the cerebellum and attaches to temporal petrous ridges and occipital and sphenoid regions. The falx cerebelli separates part of the cerebellar midline. These dural folds support the reciprocal-tension-membrane vocabulary. The tentorial notch accommodates the brainstem. A described flattening of the tentorium or altered falx span in the cranial model is not proof of a clinically stretched membrane or an explanation for a new cranial nerve deficit. [4]
Recognize findings that need ordinary clinical evaluation
An infant with posterior positional flattening often has the ear and forehead on the same side displaced anteriorly, producing a parallelogram outline from above. This does not prove occipital-condyle injury or establish an SBS pattern. The neonatal occiput has separate squamous, basilar, and two lateral condylar components, but that developmental fact does not allow a visible flattened occiput to localize a specific compressed component. Persistent asymmetry warrants pediatric assessment. [7][14]
Premature suture fusion is a different problem. Sagittal synostosis tends toward a long narrow head; metopic synostosis toward a triangular forehead; unilateral coronal fusion toward anterior asymmetry; and bilateral coronal fusion toward a short broad head. Multiple fused sutures can produce a tall skull. These patterns guide referral and evaluation, not manual “unfusing.” The posterior fontanelle commonly closes by one to two months. Anterior closure varies widely, often within the second year; one age cutoff is not a complete growth assessment. [7][8]
A truly bulging fontanelle while the infant is calm and upright, especially with fever or unusual drowsiness, needs emergency assessment. Transient fullness during crying is different. A markedly sunken fontanelle with poor intake or reduced urine raises concern for dehydration and must be interpreted with the infant's overall condition. These are clinical observations, not indications to apply a cranial strain correction. [8][13]
The temporal bone contains the external and middle ear regions and the petrous inner-ear region, but the auditory tube is partly bony and partly cartilaginous. [16] Ear ventilation is not determined solely by a palpated temporal rotation. Galbreath and temporal techniques are discussed as adjunctive osteopathic approaches; they do not replace appropriate assessment and treatment of otitis or hearing loss. Likewise, facial nerve dysfunction cannot be diagnosed from a temporal restriction.
CN VII travels through the internal acoustic meatus and facial canal before its main motor trunk exits the stylomastoid foramen. CN IX, X, and XI pass through the jugular foramen; CN XII uses the separate hypoglossal canal. New facial weakness needs prompt assessment of the cause and eye protection when closure is impaired. Bell palsy and hemifacial spasm are not interchangeable diagnoses, and neither should be assigned to a cranial suture without evaluation. For established Bell palsy, early medical treatment can include corticosteroids; this lesson does not substitute a manual technique for that care. [3][9][10]
Interpret the model and protect the clinical distinction
Pattern questions explicitly use the traditional osteopathic model. Clinical questions ask what the anatomical or safety finding establishes, without assuming that a palpatory label diagnoses the underlying illness.
Case 1
Show answer and explanations for case 1
A. As five independently validated measurements obtained by bedside palpation. (Why this does not fit)
The model's components are not five validated measurements obtained by palpation.
B. As five successive stages of ordinary pulmonary ventilation. (Why this does not fit)
PRM terminology is distinguished from diaphragmatic respiration.
C. As five clinical criteria used to diagnose intracranial hypertension. (Why this does not fit)
These propositions do not diagnose intracranial pressure disorders.
D. As five linked propositions in the osteopathic cranial model. (Best answer)
The five items define the conceptual model; listing them does not validate every proposed mechanism.
Takeaway: A model definition and proof of its mechanisms are different things.
A. Injury to a middle meningeal arterial branch with possible epidural hemorrhage. (Best answer)
The artery deep to the pterion makes this trauma-and-deterioration pattern urgent.
B. Superior sagittal sinus injury at the sagittal suture as the specific underlying pterion relationship. (Why this does not fit)
The superior sagittal sinus is a midline structure. The arterial relationship deep to the lateral pterion is the more relevant anatomical concern.
C. A posterior-fossa venous injury at the asterion as the specific structure beneath the impact. (Why this does not fit)
The asterion is a different posterolateral junction. The stem localizes the impact near pterion, where the middle meningeal arterial relationship matters.
D. Isolated injury to the superficial temporal artery without possible intracranial bleeding. (Why this does not fit)
A superficial vessel can be injured, but it does not explain away progressive drowsiness or the important deeper middle meningeal relationship.
Takeaway: Pterion anatomy belongs in head-injury reasoning, not only landmark memorization.
