A 55-year-old with 30 pack-years presents with chronic dyspnea and wheezing. PFTs show FEV1/FVC < 0.7. After albuterol, FEV1 improves by 8%.
Asthma or COPD?
The Core Split
These two diseases both cause airflow obstruction and wheezing. That's where the similarity ends. Flip between tabs · notice how different the stories are.
⚡ ASTHMA
🫁 COPD
Clinical Images
📷 PFTs: obstructive vs restrictive patterns · tap to expand
Who Gets It
Young. Often childhood onset. Atopic history · eczema, allergic rhinitis, food allergies. Family history of asthma. The kid who couldn't run the mile in gym class.
What's Happening
Eosinophilic inflammation → bronchial hyperreactivity → airway smooth muscle spasm → reversible obstruction. The airways are twitchy, not destroyed.
The Key Feature
REVERSIBLE. Give albuterol → FEV1 jumps ≥12% AND ≥200mL. The airways open back up because the walls are still intact. They're just spasming.
Triggers
Allergens (dust, pollen, dander)
Exercise (especially cold air)
Infections (viral URI)
NSAIDs (aspirin-exacerbated respiratory disease)
Emotional stress
Treatment Backbone
Inhaled corticosteroids (ICS) are the controller. SABA for rescue. Step up with LABA + ICS combo. The goal is no symptoms · and that's actually achievable.
Who Gets It
Older smoker. Usually 40+ with significant smoking history. The guy who smoked a pack a day for 30 years and now can't climb stairs.
Chronic bronchitis · "blue bloater." Overweight, cyanotic, productive cough ≥3 months/year for 2+ years. Mucus glands take over
Treatment Backbone
LAMA (tiotropium) is the first-line controller. Add LABA. ICS only added for frequent exacerbations (≥2/year). Smoking cessation is the ONLY thing proven to slow decline. O2 if PaO2 ≤55.
Feature-by-Feature
One screen. All the differences. Lead with what's DIFFERENT, not what's shared.
⚡ Asthma
🫁 COPD
Age
Young (childhood-20s)
>40, smoker
Reversibility
Yes (≥12% + 200mL)
No (<12%)
Inflammation
Eosinophils
Neutrophils
FEV1/FVC
Normal between attacks
<0.7 always
Symptoms
Episodic, triggered
Persistent, progressive
CXR
Usually normal
Hyperinflation, flat diaphragms
1st-line controller
ICS
LAMA
Prognosis
Can achieve full control
Progressive decline
Key history
Atopy, allergies, eczema
Pack-years, occupational exposure
DLCO
Normal
↓↓ (destroyed alveoli)
The Villains
Three airway disorders. Each one presents differently and demands a different fight. Tap a card to flip it.
Asthma Airway
Emphysema
Barrel Chest
Spirometry
⚡
Asthma
Reversible. Eosinophilic. Twitchy.
tap to flip
Asthma
Who: Young, atopic. Eczema, allergies, family history.
Subtypes:Pink puffer (emphysema, low BMI, hyperinflated) vs Blue bloater (chronic bronchitis, hypercapnic, edematous).
Rx: LAMA first. Add LABA. ICS only if ≥2 exacerbations/year. O2 if PaO2 ≤55. Smoking cessation = only proven mortality benefit.
🌀
ACOS
Asthma-COPD Overlap Syndrome
tap to flip
ACOS (Overlap)
Who: Older patient with asthma history who smoked, OR young smoker with partially reversible obstruction.
Spirometry: FEV1/FVC <0.7 (like COPD) but also shows ≥12% reversibility (like asthma). Both criteria met.
Inflammation: Mixed eosinophilic + neutrophilic. The two diseases collide.
Board trap: clinical medicine test clean patterns. Only call ACOS when they explicitly give BOTH disease features. If it looks like COPD, call COPD. If it looks like asthma, call asthma.
Rx: ICS + LABA (treat both components). More exacerbations, worse outcomes than either alone.

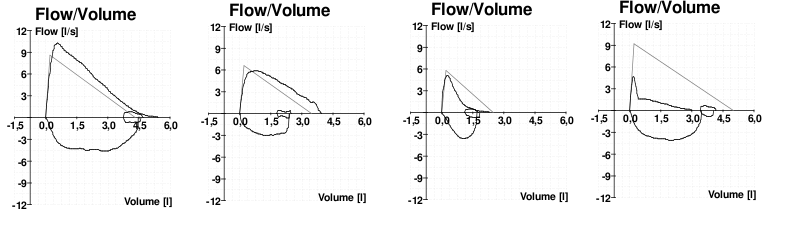

PFT Flow-Volume Loops
The shape of the expiratory limb tells you the diagnosis. Click a pattern to examine it.
Board Pearl
1FEV1 / FVC < 0.7 = obstructive (asthma or COPD).
2FVC reduced + FEV1 / FVC normal (> 0.7) = restrictive. Confirm with TLC < 80% predicted.
3Scooped expiratory limb = obstructive. Small but normal-shaped loop = restrictive.
4FEF 25 to 75 drops first in early small-airway disease (asthma, early COPD), before the FEV1 / FVC ratio crosses below 0.7.
clinical medicine shortcut: scooped = obstructive. Small = restrictive. Normal = neither. Click each button for the full breakdown.
Normal
FEV1 / FVC> 0.70
FVCNormal
TLC80 to 120% predicted
ShapeRapid rise to PEF, then linear decline
The reference shape. Airways open fully, peak flow is high, exhalation is unrestricted. Memorize this first. Everything else is a deviation from it.
Obstructive (Asthma / COPD)
FEV1 / FVC< 0.70 (diagnostic cutoff)
FVCNormal or slightly reduced
TLCNormal or increased (air trapping)
Key shapeScooped / concave expiratory limb
Asthma vs COPDAsthma: reversible post-bronchodilator
The concave scoop = small airways collapsing mid-exhalation, cutting off flow before the lungs are empty. FEF 25 to 75% is the most sensitive marker. In asthma, the curve normalizes with bronchodilator. In COPD, it does not.
Restrictive (Fibrosis / Sarcoid)
FEV1 / FVCNormal or elevated (> 0.70)
FVCReduced
TLC< 80% predicted (gold standard)
ShapeNormal proportions, compressed loop
Stiff lungs cannot expand, so TLC and FVC are both reduced. But once you start exhaling, airway patency is intact: FEV1/FVC stays normal or elevated. TLC below 80% predicted is the gold standard diagnostic criterion.
Memory Hooks
🔑
Reversibility is the whole game. Tap for the hook →
Asthma is a rubber band · stretches and snaps back. COPD is a broken rubber band · once it snaps, you can't unsnap it. Albuterol tests which one you're holding.
🔑
First-line controllers are backwards. Tap →
Asthma = ICS (the Inflammation is the problem · calm it down). COPD = LAMA (the Lungs are structurally locked · force them open). ICS doesn't fix broken walls. LAMA doesn't fix twitchy muscles. Match the drug to the damage.
🔑
The cell tells you the disease. Tap →
Eosinophils = Early onset, Episodic → Asthma. Neutrophils = Never going back, Nicotine damage → COPD. The inflammatory cell IS the diagnosis.
🔑
Pink puffer vs blue bloater. Tap →
Pink puffer (emphysema): hyperventilates to compensate → stays pink but exhausted. Thin because all that breathing burns calories. Blue bloater (chronic bronchitis): stops trying to compensate → CO2 retention → cyanosis. Overweight because NOT burning extra calories breathing. The body's coping strategy determines the phenotype.
The Algorithm
Board vignette drops. Patient is wheezing. Walk through it.
Step 1: How old is the patient?
Child / young adult (<40)
Older adult (>40)
Elimination Rounds
Five patients walk in wheezing. Don't give them the wrong inhaler.
clinical questions
Read every explanation, not just the correct answer.
Q1 of 8
A 45-year-old with a 25 pack-year history presents with FEV1/FVC of 0.64. After albuterol, FEV1 improves by 9%. What is the most appropriate first-line controller medication?
A. Inhaled corticosteroid (fluticasone)
B. Long-acting muscarinic antagonist (tiotropium)
C. Short-acting beta-agonist PRN only
D. Oral prednisone taper
Q2 of 8
Which PFT finding BEST distinguishes asthma from COPD in a patient with FEV1/FVC of 0.65?
A. Decreased FEV1
B. Decreased FVC
C. Bronchodilator reversibility (FEV1 improves ≥12% AND ≥200mL)
D. Decreased DLCO
Q3 of 8
A 28-year-old with childhood eczema presents with episodic wheezing worsened by cat exposure. Baseline spirometry is normal. What test would confirm airway hyperreactivity?
A. High-resolution CT chest
B. Methacholine challenge test
C. Serum eosinophil count alone
D. Exhaled nitric oxide (FeNO)
Q4 of 8
A 32-year-old non-smoker presents with lower-lobe panacinar emphysema on CT. He has chronic liver disease. What should be tested first?
A. Sputum culture for TB
B. Sweat chloride test for cystic fibrosis
C. Alpha-1 antitrypsin level and Pi genotyping
D. Pulmonary function tests only
Q5 of 8
A COPD patient has had 3 exacerbations in the past year despite LAMA + LABA. Blood eosinophil count is 420 cells/mcL. What should be added?
A. Roflumilast (PDE4 inhibitor)
B. Inhaled corticosteroid (ICS)
C. Theophylline
D. Oral azithromycin prophylaxis
Q6 of 8
A 70-year-old with COPD on home oxygen has SpO2 of 96%. He becomes somnolent and confused. His SpO2 is now 99%. What is the most likely mechanism?
A. Paradoxical bronchospasm from high-flow oxygen
B. Over-oxygenation blunted hypoxic drive, causing CO2 retention
C. Pulmonary embolism causing hypercapnia
D. Hypoxic vasoconstriction released, causing shunting
Q7 of 8
A child uses their albuterol 4 days per week and wakes up coughing twice per month. What asthma step is appropriate and what drug should be started?
A. Step 1 (intermittent) · SABA PRN only
B. Step 2 (mild persistent) · low-dose ICS as daily controller
C. Step 3 (moderate persistent) · low-dose ICS plus LABA
D. Step 4 (severe persistent) · medium-dose ICS plus LABA
Q8 of 8
Which is the ONLY intervention proven to reduce mortality in COPD patients with PaO2 at or below 55 mmHg?
A. Tiotropium (LAMA)
B. Pulmonary rehabilitation
C. Long-term supplemental oxygen (at least 15 h/day)
Original clinical vignettes. Shuffled, never-repeat, full explanations for every choice.
Medically reviewed by Kaitlyn Cocuzzo, MD and Fatima Ali, DO · Last reviewed June 2026
